Our J-Wall Panels do more than just help eliminate noise, they bring harmony.



 Whether you’re looking for a multi-purpose absorber panel, something more attuned to high-traffic areas, reflective panels to enhance acoustics, or any other solution to your noise problems, our J-Wall series of panels can fit your need, budget, and aesthetic! Explore all of our options here!

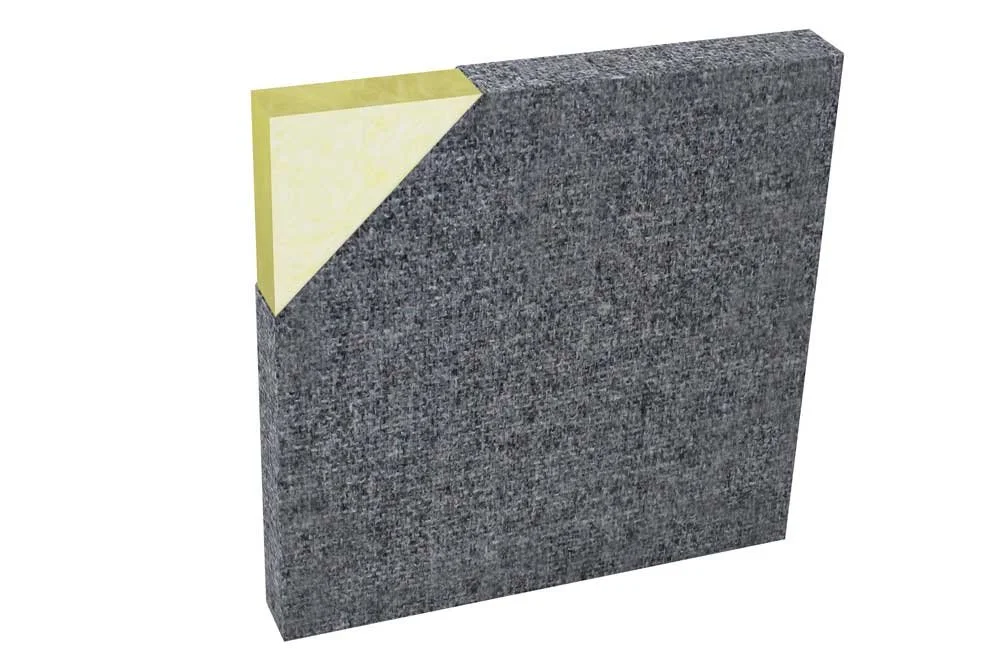

J-Wall 2000

The J-Wall 2000 Standard Wall Panel provides the ultimate in acoustical performance with excellent NRC ratings as high as 1.15. They are available in four standard thicknesses: 1/2”, 1”, 1-1/2” and 2” with custom thickness available up to 4”. The J-Wall 2000 Panels are constructed with a 6-7# PCF rigid fiberglass absorber core. The edges are available in natural or chemically hardened and are available in 4 edge profiles. J-Wall 2000 panels are available in standard or custom-sizes (up to a maximum of 5’ X10’) with custom, designer or C.O.M. fabric available.

J-Wall 2100HI

The J-Wall 2100 High-Impact Wall Panels are ideal for environments that combine the need for superior acoustical performance and resilience to high traffic areas. J-Wall 2100HI Panels are constructed using a 6-7# rigid fiberglass absorber core laminated to 16#-20# PCF high-impact fiberglass.

The J-Wall 2100 High-Impact Wall Panels are available in four standard thicknesses: 5/8”, 1-1/8”, 1-5/8” and 2-1/8”. The J-Wall 2100HI Wall Panels are available with 4 different edge profiles and are available in standard or custom-sizes (up to a maximum of 4’ X10’) with custom, designer or C.O.M fabric available.

J-Wall 2500

J-Wall 2500 Panels are constructed using 1 lb. per square foot non-reinforced mass loaded vinyl barrier sandwiched between two layers of a 6-7# PCF rigid fiberglass board. Panels are available in 1-1/8” and 2-1/8” thickness, with a maximum size up to 4’ x 10’ and may be finished in custom, designer or C.O.M. fabric.

J-Wall 2500 Panels can be installed with impaling clips and construction adhesive. Due to panel weight 2.5 lb per square foot, panels must be installed from floor to ceiling. Floor molding can be re-installed after installation of J-Wall 2500 panels.

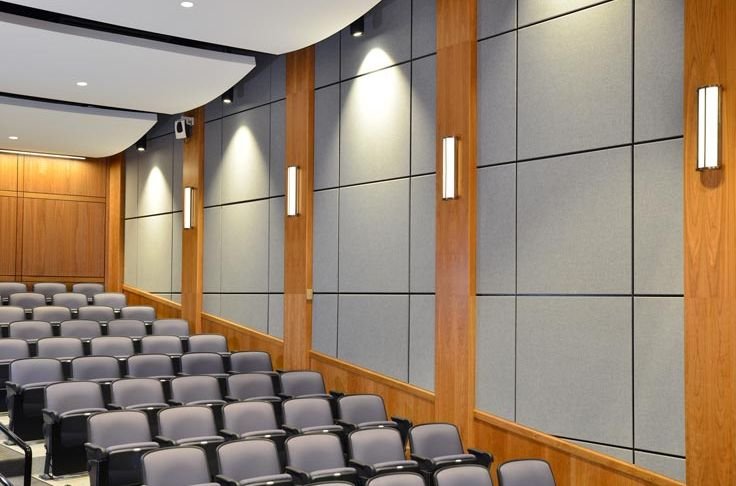

J-Wall 3000R

J-Wall 3000 Reflective Wall Panels are frequently used in conjunction with our J-Wall 2000 absorber panels. By combining both the J-Wall 3000R and J-Wall 2000 panels you reflect and absorb excessive sound, resulting in the improvement of sound quality and speech understanding.

J-Wall 3000R panels are manufactured with an MDF core in thickness to match J-Wall 2000 panels or standard thickness of 1/2” and 3/4”, with sizes up to a maximum of 4’ x 10.’ (They can also be manufactured with built up edges to match the thickness available in our J-Wall 2000 panels).

The edges are fully wrapped in standard, designer or C.O.M. fabric with 4 edge detail options. J-Wall 3000R panels are easily installed on walls with a two-part mechanical clip or nails and construction adhesives.

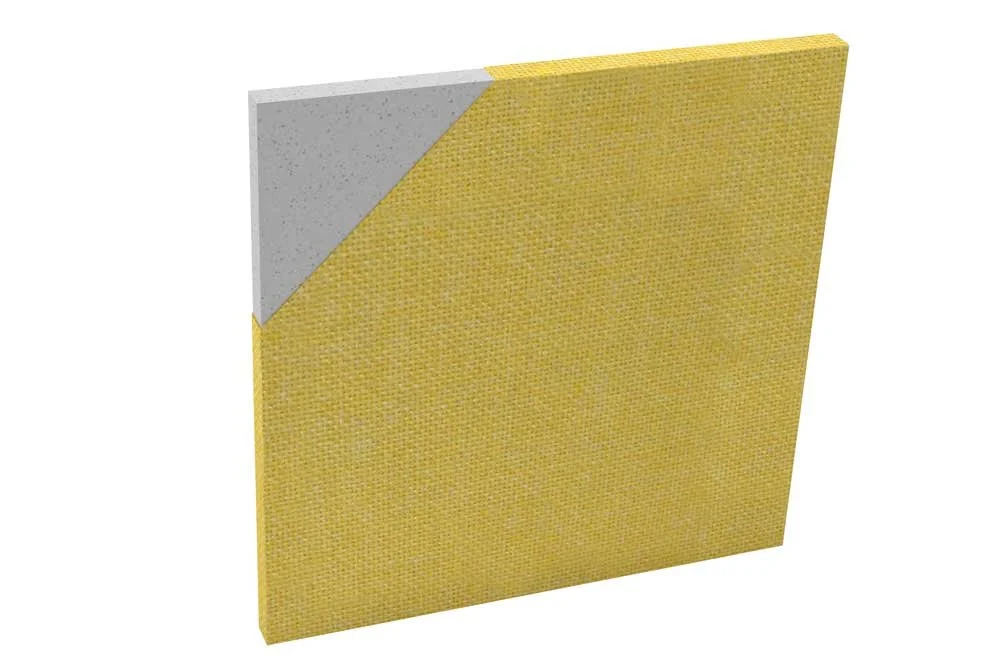

J-Wall 3100T

The J-Wall 3100 Tackable Wall Panel is manufactured specifically as a tack panel and offers minimal sound absorption. Application for the J-Wall 3100T panels includes any application that requires a highly tackable wall solution such as conference rooms, classrooms and offices.

The J-Wall 3100T panel is constructed with a 24# PCF mineral fiber core. The square edges are fully wrapped in your choice of standard, custom deisgner or C.O.M. fabrics. The J-Wall 3100 Tackable Panels come in a 5/8” thickness and custom sizes up to a maximum of 4’ x 8’.

J-Wall 4000HA

The J-Wall 4000HA Wall Panel is manufactured specifically as a high abuse sound absorber panel that offers both excellent sound absorption and high durability. Applications include gymnasiums, schools, universities, prisons, recreation centers and any area where excess reverberation and abuse resistance is required.

J-Wall 4000 High-Abuse Wall Panels are constructed using a high impact 1/16” thick perforated co-polymer underlayment laminated over a 1” or 2” thick 6-7 PCF fiberglass absorber core. The panels are fully wrapped in standard, custom or C.O.M fabric. Panels are available in 1-1⁄16” and 2-1⁄16” thickness with sizes up to a maximum of 4’ x 10’.



J-Wall 4200

Constructed of a fiberglass core that can vary from 1” thick up to 4” thick along with a perforated 1/8” thick hardboard, J-Wall 4200 Tuned Absorber/Diffuser Panels are available in standard sizes in two-foot increments up to 4 ft. x 10 ft. with custom size offerings also available.

Highly customizable, the panels can be finished in an extensive array of fabric choice options from leading manufacturers and likewise affording mounting flexibility, working equally effectively with impaling clips, Z Clips or Rotofast hardware.

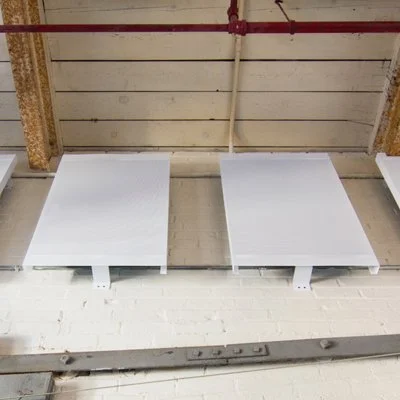

J-Metal Walls

J-Metal Wall Panels are an easy to install acoustical solution for architectural, institutional and commercial interiors where added sound absorption is desired on wall surfaces. Panels are also suitable for exterior use.

Panels are supplied in ready to use individual modules that are suitable for applications benefiting from either continuous coverage or spot coverage. Our modular design is especially suitable for retrofit applications where it is advantageous to work around existing utilities or mechanicals on the walls.

Wall panels are available in a variety of face configurations, materials, sizes and colors to enhance the design of any space. All panels are factory assembled and shipped ready to install.

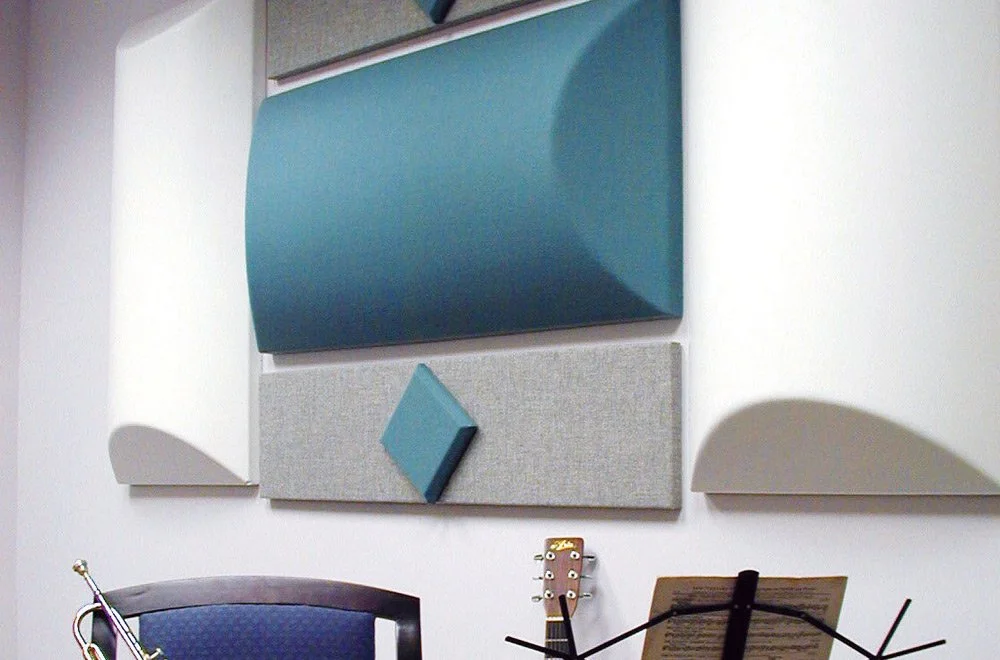

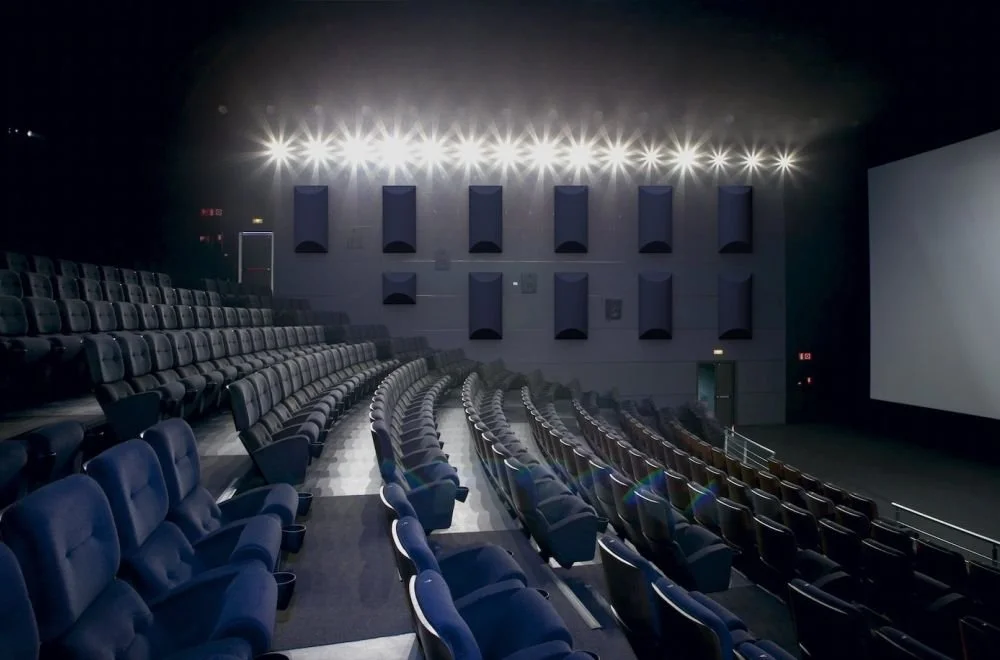

Jericho Diffusers

Jericho Barrel Shaped Sound Diffusers are perfect for applications that require a high degree of sound diffusion, such as music rooms, band rooms, recording studios and concert halls. They are lightweight and easy to install.

Barrel Shaped Diffusers are constructed of high strength reinforced fiberglass molded in a one piece barrel shape. The diffusers are finely tuned to reflect sound.
